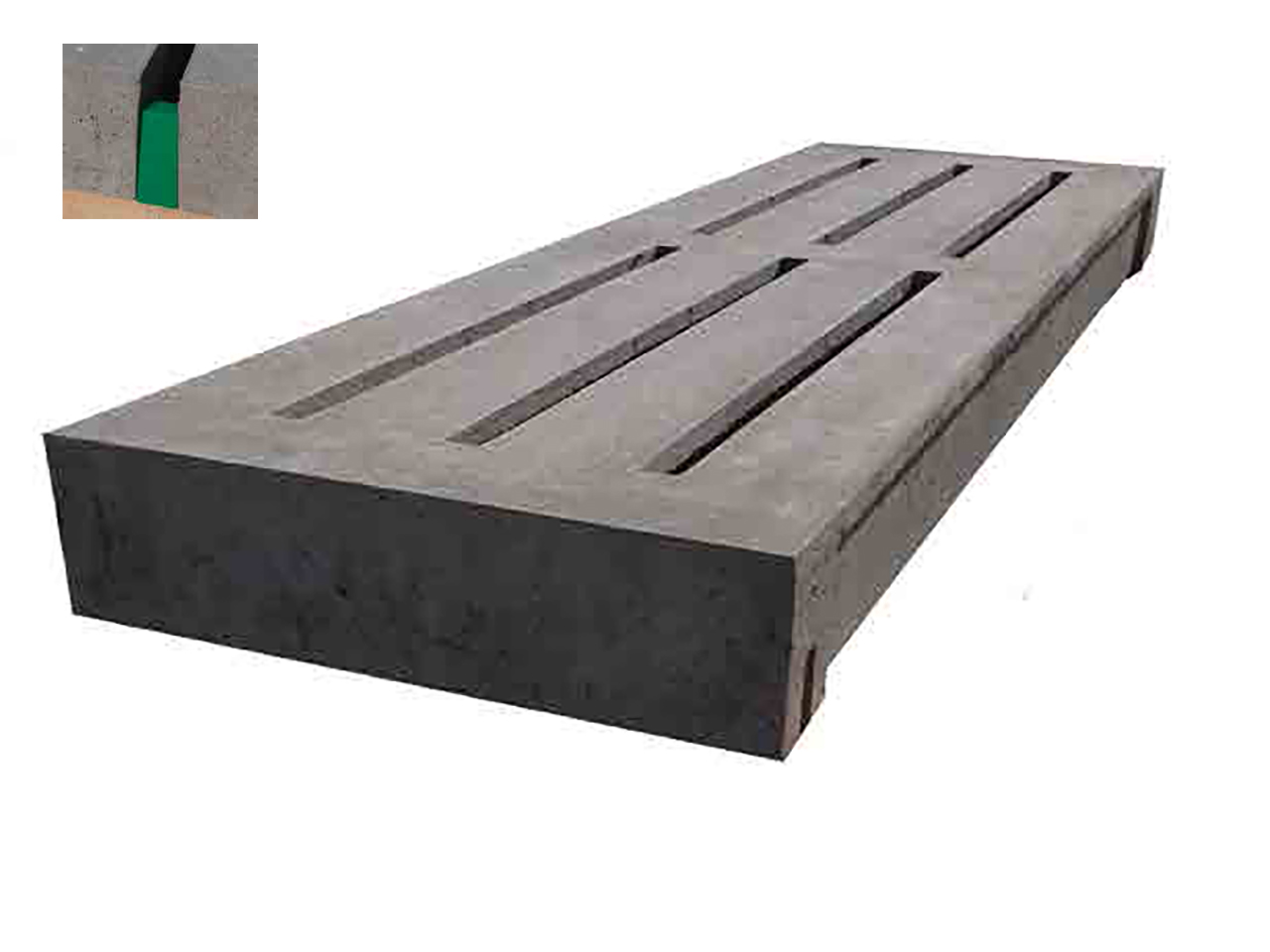

Fläbo 66 – 3t axle load

Fläbo 66 has been developed mainly for beef cattle farming with the use of the Rubber-System but can also be used for dairy cows. This type is available for load classes A2/A3 with an animal weight of up to 825kg or up to 3 t axle load.

  • Manufactured according to DIN EN 12737
  • Maximum load of 825 kg animal weight
  • concrete strength class C50/60



gap width: 35 mm
tread width: 131 mm
floor width
with spacers:
660 mm
bearing: 120 mm

Description

Concrete Quality

Our concrete is produced in quality-controlled plants using state-of-the-art mixing equipment. Moisture sensors in the mixer and calibrated scales for sand, gravel, and cement ensure consistently high concrete quality.

Not all concrete is created equal. The composition and compaction of the concrete are crucial.

Only the best aggregates are used in the production of our concrete. Our gravel and sand come from separate stockpiles that contain as few organic components as possible. The sand is double-washed, and the sand grains have a particularly rough surface, thus providing optimal adhesion for the cement paste.

Furthermore, we exclusively use CEM I cements with compressive strengths of 42.5 kN, and in some cases even 52.5 kN. The main component is Portland cement clinker (at least 95%!) and is limited to materials of natural origin. These products contain no unnecessary fillers such as fly ash or blast furnace slag, which would compromise quality and are often used to extend the cement in cheaper products. The high cement grades are essential for achieving the highest possible initial and final strengths and are the foundation for a durable product.

Even the water used is tested for compatibility with the aggregates!

We do not use any chemical additives such as plasticizers in our slatted floors; our natural concrete mix is ​​sufficient for our high-strength products!

Technical Details

Length mmHeight mmWeight kg/pieceWeight kg/sq.mNumber Bars
18001602972551
19001603142551
20001603302551
21001603472551
22001603632551
23001603802551
24001603962551
25001604132551
26001604292551
27001604462551
28001604622551
29001604792552
30001604952552
31001605122552
32001605282552
33001605452552
34001605612552
35001605782552
36002007373102
37002007573102
38002007773102
39002007983102
40002008183102
