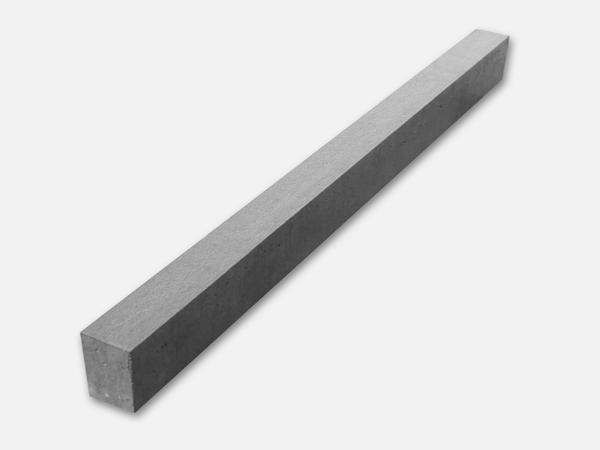

beams for pig and sow floor

beams for pig and sow floor – Bild 2

beams for pig and sow floor

For slatted floors in pig and sow sties.

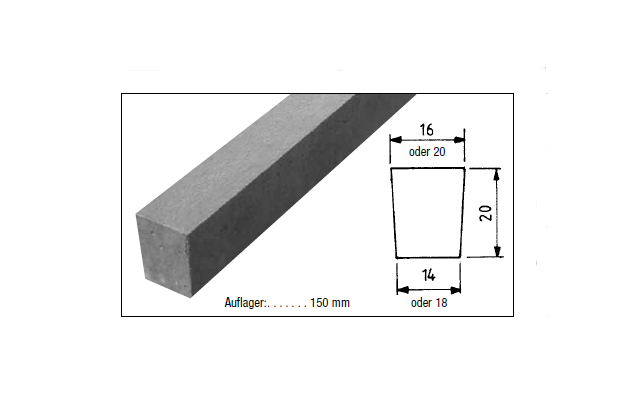

bearing 150 mm

Concrete strenght class C40/50.

request a quote

Kategorie: Beams for pig and sow floor

Beschreibung

Beschreibung

Technical Details


#009c3c	height	upperwidth	weight / kg	for slats until
in mm	in mm	in mm	piece	lenght in mm
1000	200	160	72	3000
1100	200	160	79	3000
1200	200	160	86	3000
1300	200	160	94	3000
1400	200	160	100	3000
1500	200	160	108	3000
1600	200	160	115	3000
1700	200	160	122	3000
1800	200	160	130	3000
1900	200	160	137	3000
2000	200	160	144	3000
2100	200	160	151	3000
2200	200	160	158	3000
2300	200	160	166	3000
2400	200	160	173	3000
2500	200	160	180	3000
2600	200	160	187	3000
2700	200	160	194	3000
2800	200	160	202	3000
2900	200	160	209	3000
3000	200	160	216	3000
3100	200	200	283	2400
3200	200	200	292	2400
3300	200	200	301	2400
3400	200	200	310	2400
3500	200	200	319	2400
3600	200	200	328	1800
3700	200	200	337	1800
3800	200	200	346	1800
3900	200	200	356	1800
4000	200	200	365	1800
