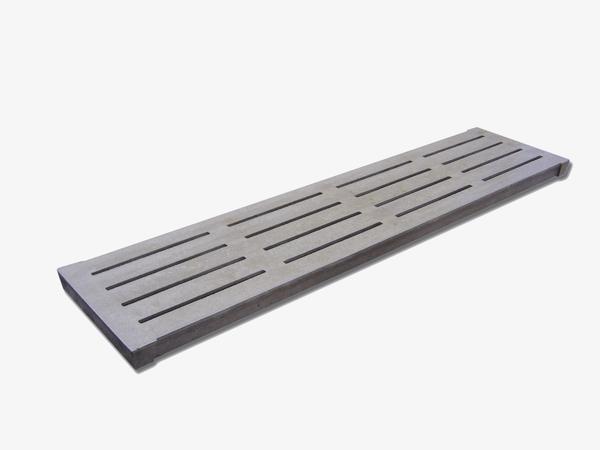

With a load bearing of up to 125 kg animal weight (load class B2) the AS-17-50 is the classical slatted floor for fattening pigs. This floor has the advantage of a better combination ability of short and long concrete elements, due to only 3 differences in elevation.
| gap width: | 17 mm |
| tread width: | 83 mm |
| floor width: | 500 mm |
| bearing: | 70 mm |
SUDING-slatted floors are perfectly matched to the needs of the animals. A non-slip and slip-resistant surface optimizes the running characteristics and reduces the risk of injury. The soils bind off after production on especially processed wood and steel pallets, which leave a non-slip texture on the surface and thus ensure a long surefooted floor.
Due to the unique production in molds with plastic surfaces, we achieve a smooth underside on the floors which prevent sticking of the manuare in the openings. The result is a clean floor and healthy pigs!
SUDING-Concrete-Slatted-Floors for pigs are produced according to DIN EN 12737. They are certified by the BauZert e.V. through factory production control and the product-certificate “Floor slats for livestock”. We will be happy to provide you with an EC declaration of performance to prove that our slats meet the requirements of the European norm.
